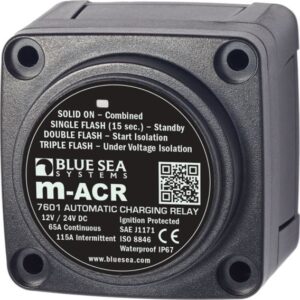

M-ACR AUTOMATIC CHARGING RELAY 12/24V-7601
25.00 ر.ع.
Specifications Nominal Voltage 12V DC 24V DC Start Isolation Yes Amperage Operating Current 90mA (Combine) 15mA (Open) Terminal Stud Torque 60 in-lb (6.78 Nm) Continuous Rating 65A Intermittent Rating 115A (5 min) Cable Size to Meet Ratings 6 AWG Maximum Cable Size 1/0 AWG Stud Material Tinned Brass Terminal Stud Size 1/4″ – 20 (M6)…
1 in stock
Description
| Specifications | |
|---|---|
| Nominal Voltage | 12V DC 24V DC |
Start Isolation  |
Yes |
| Amperage Operating Current | 90mA (Combine) 15mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating |
65A |
| Intermittent Rating |
115A (5 min) |
| Cable Size to Meet Ratings | 6 AWG |
| Maximum Cable Size | 1/0 AWG |
| Stud Material | Tinned Brass |
| Terminal Stud Size | 1/4″ – 20 (M6) |
| Relay Contact Position | |
| Combine 30 sec | 13.6V DC |
| Open 10 sec | 12.35V DC |
| Open 30 sec | 12.75V DC |
| Open High | 16.0V |
| Undervoltage Lockout |
9.5V |
| Weight | 0.80lb (0.36 kg) |
